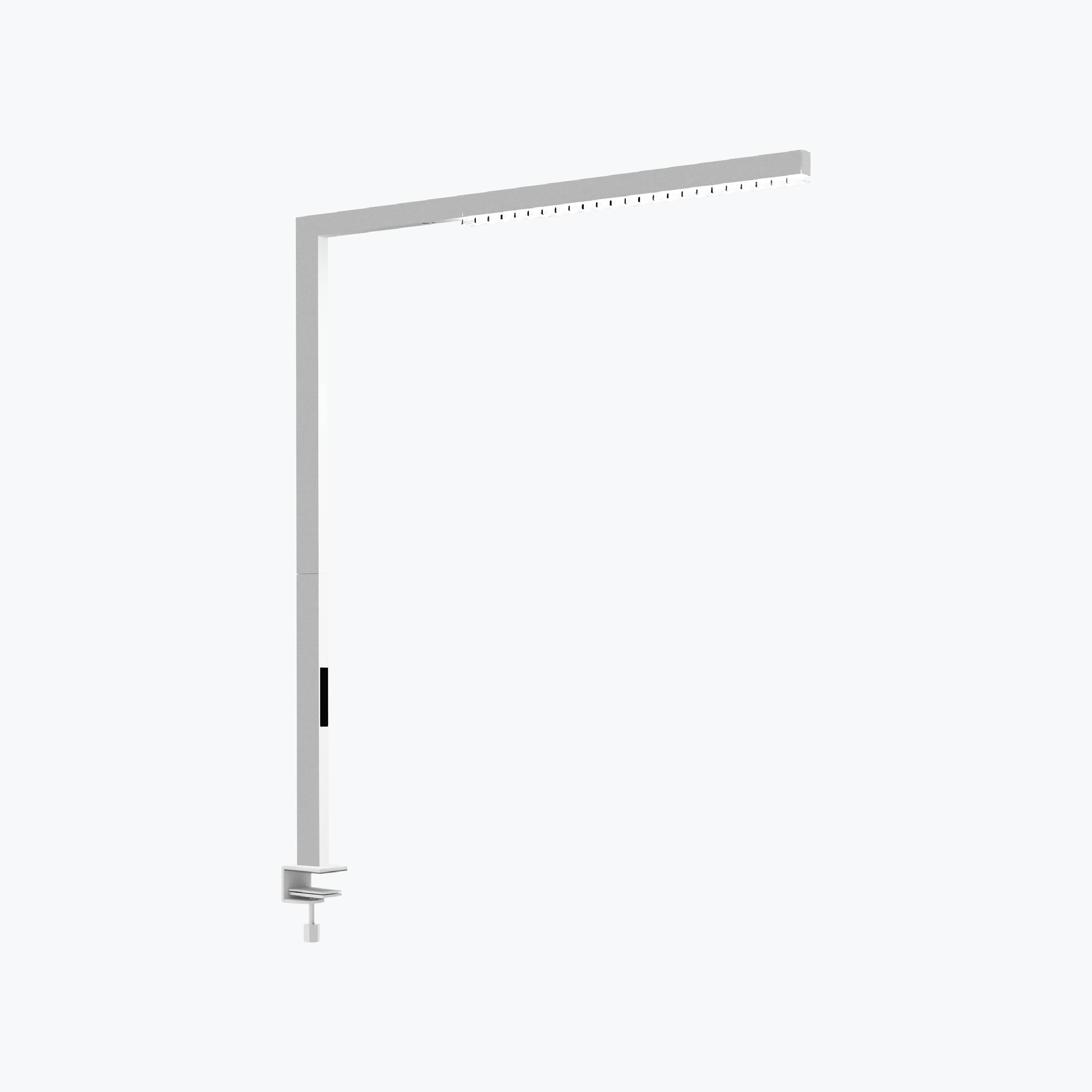

Flexa-D — Desk-mounted full product view

FS0046 Series

Flexa-D Desk-mounted Luminaire

Desk-mounted · 70 W

Flexa-D combines desk-mounted direct/indirect lighting with adjustable brightness and colour temperature. Its 70 W I04 configuration delivers 8,750 lm, with whole-lamp touch dimming, 3000–5700 K tunable white, and motion and daylight sensors.

Luminous flux
8,750 lm
Glare rating (UGR)
UGR <18
Colour rendering
CRI ≥80
Luminous efficacy
125 lm/W
Request a quote

Specifications

Photometric Data

Model code
BR-FS0046-70W-I04
Input power
70 W
Total luminous flux
8,750 lm
Luminous efficacy
125 lm/W
Indirect / direct luminous flux ratio
65 / 35
Indirect luminous flux
5,687 lm
Direct luminous flux
3,062 lm
Colour temperature
3000–5700 K tunable white
CRI
≥80
UGR
<18
Beam angles
Indirect 107° / Direct 62°

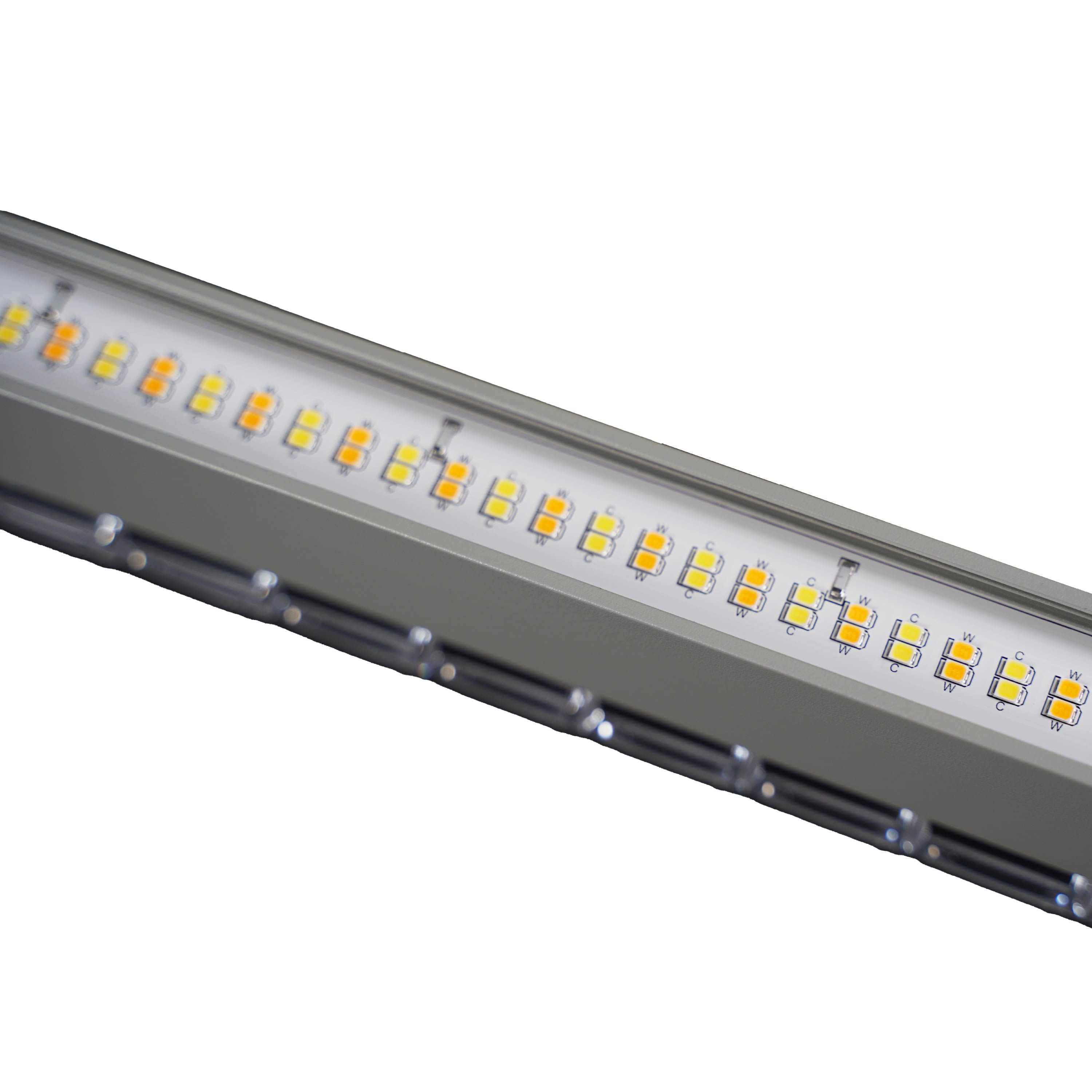

LED source
LUMILEDS SMD2835

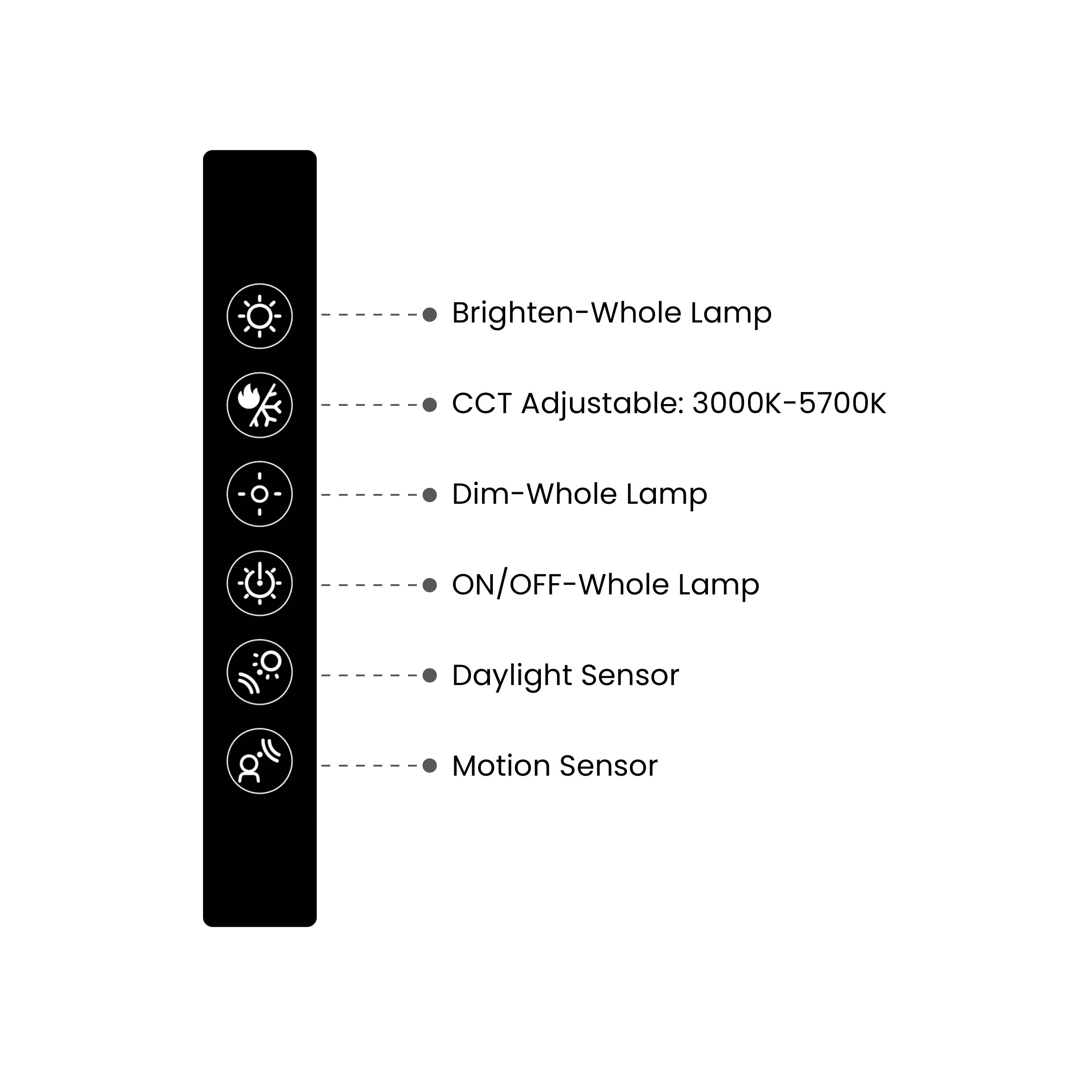

Control

Sensors
Motion + daylight
Control interface
Touch control · whole-lamp dimming
CCT adjustment
Yes — 3000–5700 K

Electrical

Input
AC 200–240 V / 50 Hz
Power factor
>0.9

Construction

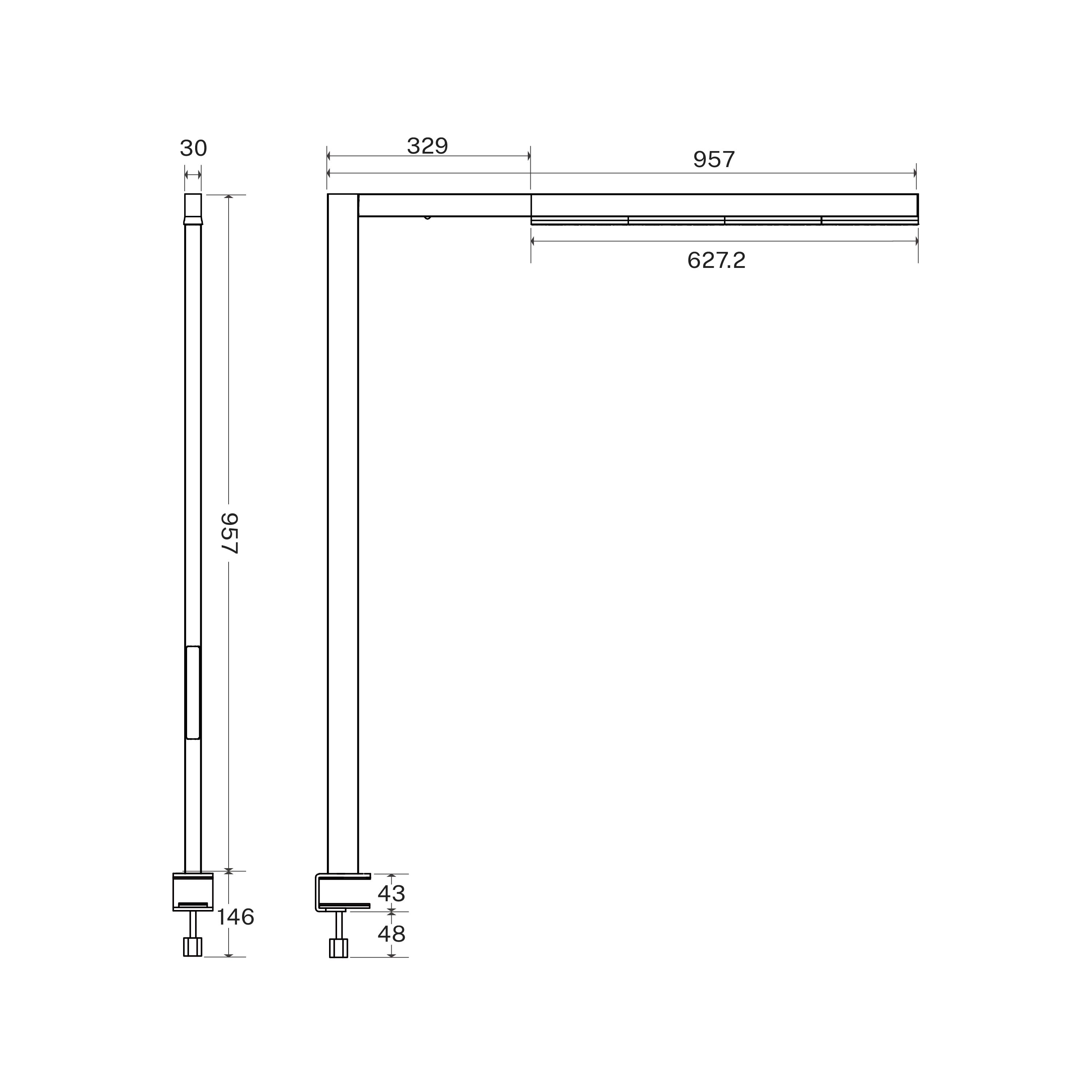

Dimensions
957 × 260 × 1205 mm
Material
Aluminium
Surface finish
Powder coated
Finish
Silver / White / Black
Protection rating
IP40
Cable length
1.8 m

Lifetime & Warranty

LED lifetime
≥36,000 h
Operating temperature
0–40 °C
Warranty
3 or 5 years, subject to quotation
